Grinding Going Into Gear
A grind on the shift usually means the clutch isn't fully releasing, the clutch brake is worn, or the sliding clutches are wearing.
Checked:Clutch releaseClutch brakeSliding clutches
Often a repair
Heavy-duty transmissions & clutches · Louisville, KY
Transmission &Clutch Repair.
Hard shifting, a transmission running hot, or a clutch that slips or won't release. Superior Truck & Trailer diagnoses and repairs heavy-duty truck transmissions and clutches for semi trucks, fleets and owner-operators in Louisville, KY.
- ShiftingGrinds, hard shifts, pops out
- OverheatingFluid, cooler and load
- ClutchSlipping, dragging, worn
The three problems the shop sees most
Shifting, Heat Or Clutch.
Pick the problem and the cause, and watch where it starts inside a heavy-duty transmission.
Why Can't I Shift Gears?
Difficulty shifting gears is the most common transmission problem the shop sees.
Why Is It Overheating?
Overheating can damage the transmission itself, lower fuel efficiency and even increase emissions.
Why Is My Clutch Acting Up?
The clutch engages and disengages the transmission, and it wears over time. The bellhousing comes off to show the pack.
Hard shifting checklist
Worn gears: what gets checked
- Gear teeth for chips and wear
- Sliding clutches and collars
- Shift forks and rails
- Shift tower and linkage
- Bearings and shaft end play
- Air shift system for range and splitter
Low fluid: what gets checked
- Fluid level at the fill plug
- Correct lube type and grade
- Leaks at seals, gaskets and the PTO
- Breather vent
- Fluid condition and metal on the magnet
- Cooler lines and fittings
Clutch problems: what gets checked
- Clutch free play and adjustment
- Release bearing and fork
- Clutch brake
- Linkage or hydraulics
- Pilot bearing
- Disc wear and pressure plate
Transmission overheating checklist
Fluid: what gets checked
- Level at the fill plug
- Overfilled as well as low
- Lube type and grade
- Dark or burnt-smelling fluid
- Leaks
- Temperature gauge and sender
Load: what gets checked
- Gross weight and grades
- Gear selection for the load
- Time lugging in high gears
- Clutch slipping under load
- PTO use
- Duty cycle
Cooler: what gets checked
- Cooler blocked with debris
- Kinked or leaking lines
- Fittings and hoses
- Airflow across the cooler
- Thermostat or bypass valve
- Coolant side of a water-to-oil cooler
Heavy-duty clutch checklist
Clutch discs: what gets checked
- Friction thickness and glazing
- Damper springs
- Hub splines
- Oil or grease on the friction
- Hot spots and cracks
- Intermediate plate wear
Pressure plate: what gets checked
- Clamp load and springs
- Heat checking on the face
- Warping
- Adjustment mechanism
- Flywheel face condition
- Mounting bolt torque
Release bearing: what gets checked
- Bearing noise
- Bearing lubrication
- Release fork and cross shaft
- Clutch brake wear
- Free pedal travel
- Pilot bearing
Transmission and clutch work, part by part
Gears & Sliding ClutchesChipped or worn gears, collars and the forks that move them.
Shift Tower & LinkageSloppy shifts, hard shifts and worn tower parts.
Clutch & FlywheelDiscs, pressure plates, release bearings and flywheel faces.
Transmission CoolerOverheating from blocked coolers, leaking lines and fittings.
Air Shift SystemRange and splitter air valves, lines and regulators.
Related repairs
Driveline RepairDriveshafts, U-joints and carrier bearings behind the output yoke.Axle RepairDrive axles, differentials and the gears downstream.Oil & FluidTransmission and differential fluid service on schedule.Diagnostics & Electrical RepairFault codes, sensors and wiring on shift and clutch controls.Engine Repair, Rebuild & ConversionPower that doesn't make it to the wheels starts here.
What drivers notice first
Signs Of Trouble In The Box.
Where each one usually leads. Catching it early keeps a clutch job from turning into a transmission job.
Jumping Out Of Gear
Popping out under load or on decel points to worn sliding clutches, gear teeth, shift forks or detent springs.
Checked:Sliding clutchesShift forksDetents
Repair or rebuild
Clutch Slipping
Engine RPM climbs but road speed doesn't follow. The discs are worn, the pressure plate is weak or the clutch is out of adjustment.
Checked:Disc wearPressure plateAdjustment
Often a repair
Transmission Running Hot
Low or wrong fluid, a blocked cooler or a long heavy pull can overheat it. Heat breaks down the fluid and wears everything faster.
Checked:FluidCoolerLoad
Often a repair
Whine Or Growl In Neutral
A noise with the clutch engaged in neutral that goes away when you push the pedal points to input or countershaft bearings.
Checked:Input bearingCountershaftFluid
Can mean a rebuild
Leaking Transmission Fluid
Drips under the transmission mean seals, gaskets or a plugged breather. A low level turns into hard shifting and heat.
Checked:SealsGasketsBreather
Often a repair
Transmission and clutch work
Under The Truck, On The Bench.

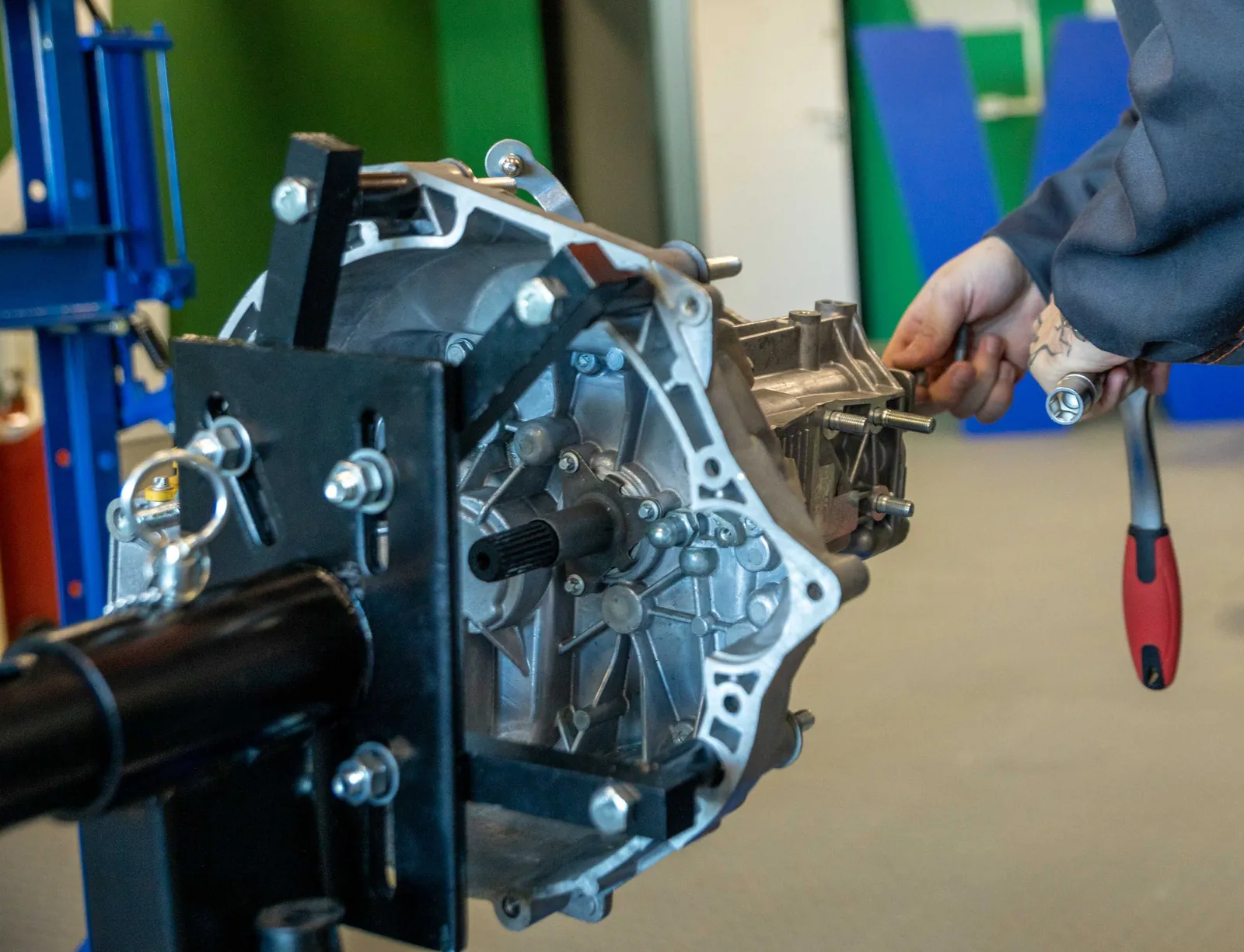

It starts with an inspection under the truck. Some jobs finish there, and some come out for work on the bench.
How transmission work moves through the shop
From the first call to a clean shift.
Tell us how it shifts, runs hot or slips. We diagnose it, lay out the repair, do the approved work and get the truck back into service.
01You call
Tell us the truck, the transmission and what it's doing: the grind, the heat, the slip.
02We diagnose it
Shifting, fluid, cooler and clutch get checked so the work starts from what's actually wrong.
03You pick the path
The repair and the parts, laid out before any work starts. Nothing gets done until you approve it.
04You roll
The work gets done, the shifts get checked, and the truck goes back to work.
Working trucks, real shop work
The work happens here, on the road and in the bay.
The trucks, trailers, service vehicles, roadside calls and shop work behind the services on this site. This is the kind of commercial equipment Superior works on every day in and around Louisville.
Truck repair customer reviews
What Drivers SayAbout The Shop.
Read customer feedback on Superior Truck & Trailer's repair work, communication, and service experience in Louisville.
Transmission work backed by a full truck shop
The Rest Of The Truck,Same Shop.
Transmission work often turns up other jobs. Everything else the truck needs is handled from the same Louisville shop.
Transmission & clutch FAQ · Louisville, KY
Transmission Questions.
Hard shifting, grinding, overheating and slipping clutches: the questions truck owners ask most.
(502) 789-6644Why can't I shift gears?
Difficulty shifting gears is the most common transmission problem the shop sees. It can come from worn or damaged gears, low fluid levels or a malfunctioning clutch. The technicians diagnose which one it is before any parts are replaced.
Why is my transmission overheating?
Low or wrong fluid, a blocked or leaking cooler, and heavy loads on long grades can all overheat a transmission. Overheating can damage the transmission itself, lower fuel efficiency and even increase emissions.
Why is my clutch malfunctioning?
The clutch engages and disengages the transmission, and the discs, pressure plate and release bearing wear over time. A worn or out-of-adjustment clutch can make shifting hard, lower fuel efficiency and damage other parts of the truck.
What causes a truck transmission to grind when shifting?
Most often the clutch isn't fully releasing, the clutch brake is worn, or the sliding clutches inside the transmission are wearing. Low fluid and linkage problems can add to it.
What causes a transmission to jump out of gear?
Worn sliding clutches or gear teeth, bent or worn shift forks, weak detent springs, and worn mounts or linkage can let a transmission pop out of gear, often under load or when letting off.
How do I know if my clutch is slipping?
Engine RPM rises but road speed doesn't follow, especially on a grade or pulling from a stop, and you may smell the clutch. Worn discs, a weak pressure plate or no free play in the adjustment are the usual causes.
What happens if a truck transmission overheats?
Heat breaks down the fluid, hardens seals and wears bearings and gears faster. Left alone it can damage the transmission, and the truck can lose fuel efficiency and put out more emissions.
How often should transmission fluid be checked on a semi truck?
Check the level at every preventive maintenance service and any time you see a leak or the transmission runs hot. Change it on the transmission manufacturer's schedule for the lube and the truck's duty.
Can a clutch problem damage the transmission?
Yes. A clutch that doesn't fully release makes gears clash and wears the sliding clutches, and a slipping clutch builds heat. Fixing the clutch early protects the transmission.
What does a clutch brake do?
The clutch brake slows the transmission input shaft when the pedal is pushed all the way down, so the truck can go into gear from a stop without grinding. A worn clutch brake is a common cause of grinding into first or reverse.
Do you repair heavy-duty truck transmissions and clutches?
Yes. Superior Truck & Trailer diagnoses and repairs transmissions and clutches on heavy-duty diesel trucks, including shifting problems, overheating and clutch issues.
Where can I get truck transmission repair near Louisville, KY?
Superior Truck & Trailer repairs truck transmissions and clutches at 3816 Bishop Lane in Louisville, KY, for trucks from Louisville and the surrounding Kentucky and Southern Indiana counties. Call (502) 789-6644 with the truck and what the transmission is doing.
